| SBTW1 series Intelligence style frame turnoffs utensil |
 |
| Product Model: SBTW1 series |

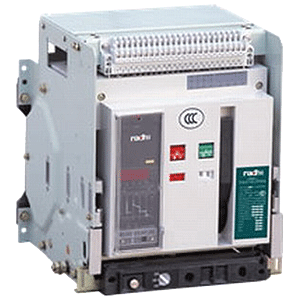

| Product Name: SBTW1 series Intelligence style frame turnoffs utensil |
SBTW1 series
Intelligence style frame turnoffs utensil
■scope of application
SBTW1 series intelligent omnipotent style depression turnoff utensil ( Below for short turnoff utensil) . Fitting be used for communicate 50Hz. Rated voltage 400V. 690V. Current rating for 400A — 6300A will distribute in network. Chief be used for allot electric energy and guard wire and current supply device free from overload. Owes voltage. Short. Single-phase contacts to earth wait for breakdown’s harm. Should turnoffs utensil possess many kinds intelligences protect function. Can do selective protection. And action precisely. Avoids no need power cut. Enhances supply electricity credibility
Will be 2. Model meaning and classification
2.1 models and meaning
Will be 3. Uses environmental condition
3.1 Surrounding air temperature
3.1.1 Upper limit value not does exceed + Will be 40 ℃
3.1.2 Lowest limit value not does under - Will be 5 ℃
3.1.3 24h ’s mean value not does exceed+ Will be 35 ℃
Note: Lowest limit worths for- Will be 10 ℃ or- Will be 25 ℃ ’s operating condition. Must to factory declare at order time consumer.
Upper limit worths exceed+ 40 ℃ or lowest limit will worth under- Will be 25 ℃ ’s operating condition. Consumers should
with factory negotiation.
3.2 Installation site’s height not exceed 2000m
3.3 Decent condition:
Atmosphere comparative absolute humidity around air humidity for+ 40 ℃ time not will exceed 50%. At compares can have compare high comparative absolute humidity under low temperature. Most fitting lunar monthly average most big comparative absolute humidity is 90%. Meanwhile should lunar monthly average minimum temperature for+ 25 ℃. And considers go because temperature change take place ’s congeal dew at product seemingly.
3.4 class of pollutions for 3 grades
3.5 installs kind
Specified (number or amount) operating tension 690V and below ’s turnoff utensil be used for install kind IV; Ancillary circuit ’s installs kind. Besides owes voltage trip utensil coil. Mains transformer primary coil and turnoffs utensil primary circuit ’s same outside. Specified (number or amount) operating tension for 400V times. Ancillary circuit installs kind III. Will be 4. Chief technology parameter
4.1 turnoffs utensil ’s current rating ( Sees watch 41) Watch 41
| 壳架 等级额定电流（INM）A 额定电流（In）A |
| 2000 （400）630.800.1000.1250.1600.2000 |
| 3200 2000.2500.（2900）.3200 |
| 4000 3200.（3900）.4000 |
| 6300 4000.5000.6300 |
4.2 turnoffs utensil ’s specified(number or amount)short dispart break ability and short-time endurance current (Sees watch 42)Watch 42
| 壳架等级 电流(INM)A |
额定极限短路 额定运行短路 额定短时
分断能力Icu(kA) 分断能力Ics(kA) 耐受电流Icw(kA)Is |
| 400V 690V 400V 690V 400V |
| 2000 |
80 50 50 40 50 |
| 3200 |
100 80 80 65 80 |
| 4000 |
100 80 80 65 80 |
| 6300 |
120 80 100 65 100 | Note: Turnoffs utensil flash over distance for" 0 " . * Specified (number or amount) short-time endurance current Icw= 20kA 1s. 30 kA 0.5s
4.3 intelligent trips utensil ’s protect performance
4.3.1 trips utensil category: Possess can only type trip utensil. Owes voltage instantly ( Or delay) Action trip utensil and dispart encourage trip utensil
4.3.2 intelligent trips utensil performance
a. Possesses overload long delay inverse time limit. Short delay inverse time limit. Short delay fix time limit. Will move all sorts of function. Can by consumer by oneself enactment. Composes need ’s protect characteristic;
b. Single-phase ground protection characteristic;
c. Shows function: Punishes fix current Ir show. Action current shows;
d. Ammeter function: Checkouts main loop current;
e. Calls the police function: Overload call the police;
f. Self-checking function: Overheating protection. Micro computer since consultation;
g. Experiments function: Experiments trip utensil ’s action characteristic.
Note: Consumers need. Can ha communication joint ’s turnoff utensil. In by computer to turnoff utensil carry out remote control at one kilometre. Shake transfer. Measure from remote. |
|
|
|
|
