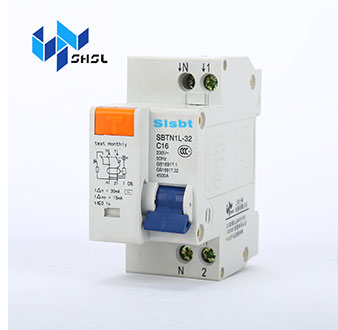

| SBTN1L-32 Small-typed creepage turnoff utensil |
 |
| Product Model: SBTN1L-32 |
| Product Name: SBTN1L-32 Small-typed creepage turnoff utensil |
SBTN1L-32
Small-typed creepage turnoff utensil
¡öScope of application
SBTN1L- 32 creepages turnoff utensil structure new, Mold number at two ( 36mm) Withs two pole switch in width, Meanwhile possesses overload protection, Short-circuit proof and creepage protection, To human body get an electric shocks possess directly protection effect, Can be used for voltage 230V, Current to 32A below ¡¯s do overload and short and electric shock protection in line.Is house, Guesthouse, Hospital, Shop, In buniness building, Industrial and mining enterprises installs ¡¯s idealest product.
¡öModel and its meaning
This product accord with standard: GB16917.1. IEC61009-1, GB10963. IEC60898,
¡öchief will be technology parameter
Watch 3
| Model |
Current rating IN(A) |
Frequence(Hz) |
Specified(number or amount)short Disparts break ability(KA) |
Specified (number or amount)leavings Action current(A) |
Action time(S) |
Specified (number or amount) leavings Not action current(A) |
| SBTN1L-32 |
6, 10, 16, 20, 32 |
50 |
4.5 |
I ¡÷ n= 0.03 |
t will be 0.1 |
I ¡÷ n0= I ¡÷ n/ 2= 0.015 |
¡öTrips utensil performance
Watch 4
| Heat trip utensil |
Trip utensil |
Creepage trip utensil |
| Current(A) |
Guarantee performance |
Current(A) |
Guarantee performance |
Creepages current (A) |
Guarantee performance |
| 1.13In |
t¡Ý1h not will trip(Cold form) |
5 In |
t¡Ý0.1s not will trip |
I¡÷ n will be 0.03 |
Not do trip |
| 1.45 In |
t< 1h trip(Heat form) |
10In |
t<0.1s trip |
I¡÷ n will be 0.03 |
t< 0.1s trip | |
|
|
|
